Leaders (or other objects) show on screen but don't plot

Applies to

Caddie 12 and higher

Question

Why do my leaders (or other objects) show on screen but not plot?

Answer

There are a number of reasons why they may not plot - here are some common ones:



1. The General | Plotable is set to NO.

This can be change to YES in the Object Properties dialogue, by first selecting the leader(s) that need changing and changing the parameter to YES

To Change all –

  • Use  “QUICK SELECT” from the context menu
  • Select Scope | Leaders | Plotable  |= | No
  • SELECT
  • CLOSE
  • Use Object Properties

 leaders1

  • Change Plotable to YES

 leaders2

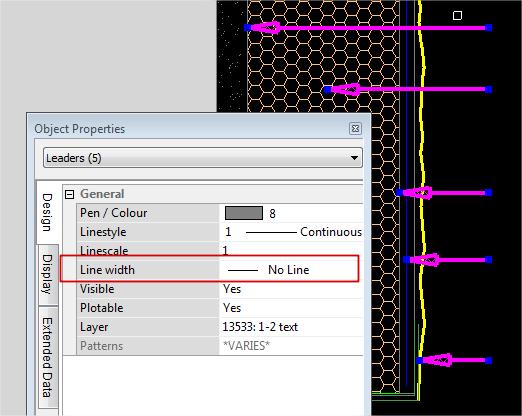

2. The line thickness is set to 0.0 (NONE) as shown below.



 leaders3



To Change all –

  • Use  “QUICK SELECT” from the context menu
  • Select Scope | Leaders | Thickness  |= | 0.00
  • SELECT
  • CLOSE

 leaders4



  • Use Object Properties
  • Changed to a thickness of default

 leaders5
