General questions about Caddie

How can I Convert an IFC file to DWG

Applies To

Caddie 25 onwards


How can I convert a .IFC file to .DWG?



In Caddie Professional, from the top menu select File -> Open and change the File Type to Bin Files (.IFC).

Browse to the file, select it, open it then from the top menu choose File -> Save As to save the file as a .DWG file.

Transferring an SL (Softlock) Licence between Computers

When should a licence be moved from one machine to another?

A softlock should be moved from one machine to another when the user wants to use Caddie on a different machine permanently, or prior to a machine having a disk changed, formatted etc., after which it can be moved back if required

The process involves 3 stages:

·        Obtaining the ID file for the destination machine

·        Removing the licence from the source machine

·        Applying the licence to the new machine

Obtaining the ID file for the destination machine

On the destination machine open a browser window and type in the address: http://localhost:1947

The Sentinel ACC (Admin Control Center) should open. If it doesn’t, reload the Caddie Hasp Drivers.

Select Diagnostics from the left menu

Click the Create ID File, as shown above. Save the file. This is the unique ID of the destination machine and is needed in the next stage.


Removing the licence from the source machine

Start the Caddie_Remote_Updater.exe program. On a standard installation it can be found in:

C:\Program Files\Caddie\Caddie xx\Tools\caddieinfo where xx is the version of Caddie

Select the ‘Transfer Licence’ Tab


At the bottom of the dialogue there are three options you must complete:

 When you have completed the options, select ‘Generate Licence File’ and a file containing the licence will be created with a suffix of ‘h2h’ (host to host).



Applying the licence to the new machine

Copy the file created above to the destination machine. On the destination machine open a browser window and type in the address: http://localhost:1947. Select the ‘Update/Attach’ option from the left hand menu.

Use the browse button to browse to the h2h file you have just copied, select the file then click the ‘Apply File’ button. Check the text in the middle of the page to ensure the licence has been transferred successfully.


1. If there are several licences on the source machine, check to see which licence Caddie is using prior to transferring it. To do this, close all active programs then start Caddie, then in a browser window type in the address: http://localhost:1947. With ‘Sentinel Keys’ selected in the left hand menu, look at the ‘Local’ licences and check which one has active sessions. Note the key ID on that row. This is the Key ID you want to transfer.


2. If you are using any version of Caddie prior to 24, you will also need the matching activation file for your dongle. Having transferred the licence, if Caddie starts in demo mode, from the top menu select Help -> Dongle Info

Choose the ‘Dongle Tools’ tab. Check that the dongle number shows correctly, then click the ‘Download latest licence file’ button and follow the prompts. This step is not required from Caddie 24 onwards.


DTM 3D points only at a Z height of "0"

If after creating 3D points from 2D points in the DTM commands the resultant points have a height of "0" we need to look at the text in more detail.

The text you see on the screen may be the result of some text formatting, and this does not show the added formatting in the text.

For instance the screen text may look like this 184.40 but if the text is edited (CSM>Edit Text) and the "Show format codes" tick box is ticked the you will now see any codes used for the displayed text. It may look like this - {\C256;184.98}. For the details of what the codes mean you can search the help from within Caddie for - Enter text, Text Format or Special Characters.

To remove the format of a single Mtext object, select the text on its own and from the CSM>Text>Remove format Codes.

This is great for a single paragraph of text however we are likely to need to do this for all the height text in the drawing.

To do this we need to first isolate the Mtext we need to change. This can be done in many ways and will depend on the current drawing. If this drawing has used layers for the Mtext then isolate the text by displaying only the layers. Now select all of the Mtext (if you have isolated the Mtext use Ctrl-A). From the CSM choose explode and exploded the Mtext. The text now is converted to MText. The 2D to 3D points command only works with Mtext, , so this has to be converted back. To do this select the command

Preventing an inserted OLE object (Spreadsheet) from updating


Caddie 20 onwards


How do I stop a spreadsheet that has been inserted into a drawing from updating when the spreadsheet is updated externally?


If you have inserted a 'linked' OLE object into your drawing and you update the object it came from, the version in the drawing will be updated. To prevent this, you must 'break' the link. To do this, select the object then right click and from the CSM choose 'Edit OLE links'. Choose the correct link from the dialogue and click 'break link'

Note that this action cannot be reversed. If you want to re-link an OLE object erase it from the drawing and re-insert it.



Why are multiple objects selected when a Caddie drawing is opened in another program?

Opening a Caddie drawing into other CAD programmes causes multiple objects to be selected when selecting a single object.


In caddie we use a function called Patterns. This is function logically associates all the objects in the Pattern by assigning a unique name all the Patterns objects share. The objects in a pattern can be manipulated (copied, moved, rotated and have their properties changed etc.) either individually, or by using a Pattern command, all at the same time (like a group) without physically locking them together as Blocks would do. This functions is also used by other DWG based drawing systems but the function can have different names, typically “Groups”.

What happens with Patterns (Groups) when opening a DWG drawings in another programme

When opening a Caddie generate drawing in other programs the functionality of Patterns remains the same as it does in Caddie. However the default way in which these are handled in these other programs can be different. For instance some other programmes default to selecting all the objects in a group (pattern) when a single object is selected. To the untrained eye this gives the appearance that the objects are block when in fact they are not.

How to Change the way Patterns (groups) are handled in other DWG programmes

To change the way these groups (Patterns) are treated you may need to check  with your software user guide to find what the control is to change the “Select All” function.

As an example you may find that you can toggle group selection on and off by using a keyboard shortcut such as  CTRL+H or SHIFT+CTRL+A. Some systems also have settings in the options dialogue for selection. Look for something like “Selection of Object Grouping” or “ Object Grouping”. Also look in your products user guide for the System variable such as “PICKSTYLE”.

Searching the internet using your favourite search engine for “Object grouping DWG” or “DWG PICKSTYLE” will also turn up a number of useful tutorials and help pages.

How To Have a Single Click Selection of Patterns (Groups)

You might be interested to know that the single click selection is an option in Caddie. To set this up go to 'MENU | SETTINGS | MOUSE'. Selectio the 'PATTERN SELECTION' option from the left Single Click drop down.

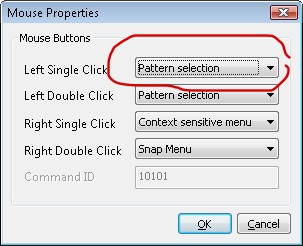

mouse properties


Enabling Through Viewport Editing


Caddie 20 onwards


How can I enable through-viewport editing?


To enable through-viewport editing, go to Configure -> Environment Settings. Expand the Viewports option and double click the 'No'. You can then change it to Yes in the combo box. Click OK to save the settings. Through-viewport editing will now be enabled. Double click inside a viewport to edit the modelspace objects.


What is the Best Format for Large Images Used in Caddie?

Applies To:

Caddie 16 or later


I have a very large image I need to insert into a Caddie drawing. What is the best format to do this?


When inserting very large images into Caddie the best image formats, are ECW and JPEG2000.

ECW is the format used for vary large terrain type maps, such as those from satellite images. Normally images of this type will already be in the ECW format. If you wish to convert an existing image to this format, you will need an external converting programme.

The other format is the JPEG2000 (or JP2) format. This is the recommended format for large images such as scans from an existing drawing in high resolution. For instance an A1 drawing scanned at 600dpi.

Modern scanners and output devices may be able to create these images in the JPEG2000 format. However if you are unable to create the JPEG2000 format, or you already have your image in another format, you can use the internal converter in Caddie.

This is accessed from Convert on the Modify Menu.

convert image jpeg20001

  • Select Convert Image to JP2000
  • From the explorer window select the file you wish to convert
  • Select the folder where you want to save the image

A new image in the format of JPEG2000 with the existing name is now saved in the suggested folder.

The existing image is still intact.


Unexpected results when specifying coordinates during move or copy?

Applies To:

Caddie 10 and later


I select some objects and I want to place them at a specific distance and direction relevant to where I pick the object from. I specify it using a X ,Y  & Z co-ordinate but the object ends up in a completely different position. Why is this and how can I stop it happening?


There are two ways in Caddie that the measurements are done.

ABSOLUTE (ABS) the default in Caddie

flag absolute

Absolute will always make measurements from the UCS origin by default

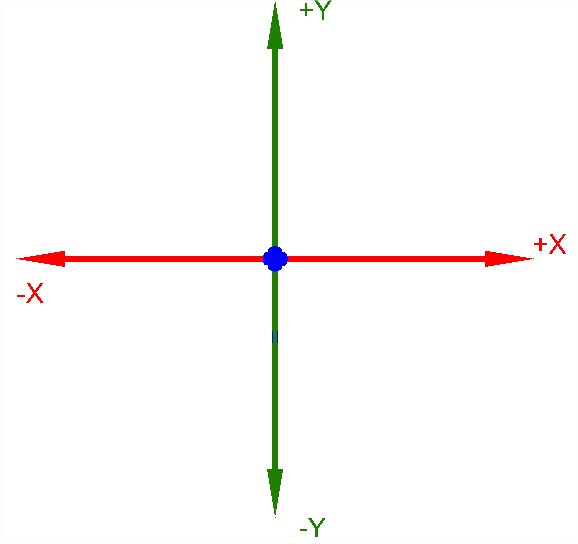

So 0,0,0 will be the Zero Origin of the User Co-ordinate System (UCS). The UCS is on the World Co-Ordinate System (WCS) by default.

The UCS can be moved, so therefore the absolute position is also moved.

If when typing in the x,y,z co-ordinate value, it is preceded by a hash (#) - #0,0,0, the absolute measurement is made from the absolute position of the WCS.


flag- rel

Relative measurements are always taken from the current origin in the drawing, which is indicated by a small white rectangle.


The reason your selected objects where moved to a position which you were not expecting was probably due to the fact the ABS flag was set and not the REL flag.

How Does Scaling Work in Caddie?

Applies To:

All versions from caddie 10


Please explain how scale and units work in Caddie


The Scale

There is only one fundamental  you need to understand about scaling in Caddie.

In Caddie Everything is drawn at a scale of 1 unit = 1 unit (1:1)

This is: All objects drawn on the MODEL or the SHEET(s)

The Units

In Caddie a unitary name (Base Unit) or no value can be assigned as the units in a drawing. It is important to understand that changing the base units does not change the size of a drawing. So if a line is drawn 4 units long it would still be 4 units long even if the base units are change from inches to millimetres.

So Why Use a Base Unit Name?

The reality is you don't have to, and that is why many drawings from external sources don't have the base unit set. However if it is set Caddie can determine what to do with it.

This can be explained with a simple example of a table.A table was originally drawn  by the author in inches (24” x 48”), however the unit name was not assigned. Therefore as far as Caddie is concerned the size is 24 x 48 units. If this drawing was brought into Caddie using “Insert Symbol” a number of things will change the way this will look in our drawing.

Let’s assume a drawing we are working on had had its base units set to millimetres, the default, and we want to insert the table as a symbol.

When inserting the symbol Caddie can automatically scale the symbol drawing to match the current drawing as long as both drawings have a base unit set.. However if no units have been assigned to the symbol drawing, Caddie won’t know how to scale the symbol and so will not change the size. In this case our imported symbol will therefore be 25.4 times too small. This would also be the case if the converse was true, as shown below.

Working Drawing
Unit value set  (Y/N)

Unit value set  (Y/N)


Scaled (Y/N)













So what happens if the symbol, with specified units, is re-scaled? In this example the table would now be scaled by the scaling difference of inches and millimetres. (25.4 times) So our table would now be 610 x 1220 units (approx).

In exactly the same way as just mentioned, copying from one drawing to another via the clipboard, including Detail Copy,  will also take in to account the base units used, and as long as they are specified in both drawings, scaling will automatically be carried out.

A good number of survey or map drawings will be drawn bases on a unit value of metres, but the author of the drawing may have not assigned a a base unit. When opening a drawing without an assigned base units, Caddie you will be warned that no units have been assigned.

we could do as suggested, but the chance that we will also need to ere-scale the drawing

As already mentioned, changing the unitary value will not change the size of the drawing. If we require to take the metre drawing and change it to millimetres, we need to also rescale the drawing. In other words if the length of a line was drawn as 4 units we would need to scale it by 1000, so the line length is now 4000 units.

Because we need to change two things (scale and base units) a better way is to go to  the Transformation commands in the Caddie Application and use the Rescale command.

This can be accessed from MENU-->MODIFY-->TRANSFORM-->RESCALE (Caddie 20 and later)

or from the Transform tools (Classic Menu)


This command does two jobs.

  1. Re-sizes the drawing
  2. Sets the Modelspace Units

Both are independent of each other, it is just convenient to do both at the same time.

On the left of the dialogue choose the part of the drawing that we will apply the scale to. In the case of our map then this is likely to be the whole drawing (the Scope).

The Scaling Factor

This is where the scaling factor is either specified or measured.


Is a multiplication value

From line

You will be asked to indicate a line. The current length of the line will be stated and it can be amended with the correct value

From 2 Points

Similar to From Line. When there two points that can be measured, for instance the intersections of a grid


If the original target measuring unit is known this will take the ‘From’ and ‘To’ units to work out the scaling factor. Ensure you know that the drawing has been drawn in the selected units. If you are not sure use From Line or From 2 Points.


Rescale Finishes

Here you can choose to scale or not scale Finishes (Text, Dimensions and Hatch etc).

Set Origin

If ticked you will be asked to indicate the new origin of the drawing. If unticked, the current origin will be used.

Modelspace units

The first line states what the current units are. If this is incorrect the change them here by selecting the required units and ticking the box.

When the values are correct, select OK.

Both the drawing and, if ticked, the base units will have changed. On completion it is unlikely that the drawing will be visible. Don't forget, in this case, the drawing is 1000 times bigger, and you are probably looking at a blank space in the drawing. If a Zoom Extents is done the drawing should show.

After scaling the drawing it is always worth doing a measure of the drawing,

If for some reason you need to re-due the scale, make sure you know what the current measurements are before scaling.

Final point

If you are using the drawing for insertion as a symbol or just bringing part of the drawing in via the clipboard, you don't have to re-scale the original drawing. All that is needed is to set the base units to the correct units of the drawing. For instance the map that is drawn in metres, set the base units to Metres. When copying via the clipboard Caddie will do the scaling for you. If you intend to use it as a symbol that save it after assigning the base unit.

How Do I Restore the command bar or other toolbars to their docked positions?

Applies to:

Caddie 11 and later


If I accidentally drag my command bar or other toolbar from the docked position, is there a quick way to restore it?


If you double click the top "Blue" bar of the tool bar it will revert to the last docked position.

If you to reset all the toolbars back to a previous saved setting, use  'Settings à Screen Layout à Recall Screen Layout' . If you haven't saved a screen layout then restore the "Original" layout, set it up again the way you like it and save the screen layout - just in case you need to do it again. Once saved it is wise to export it to an archive folder / drive.

How can I increase the maximum number of viewports on a sheet?

The maximum number of active viewports is determined by the system variable: MAXACTVP


To increase the number of active viewports that will be visible on a sheet, go to Utilities->System->Set System Variable


Type MAXACTVP on the command line, then press enter. When prompted type the number of viewports you want to see, then press enter.

How Can I Save a Drawing in a different version of DWG

Applies To

All versions of Caddie from Version 10


How can I save a drawiing in a different version of DWG?

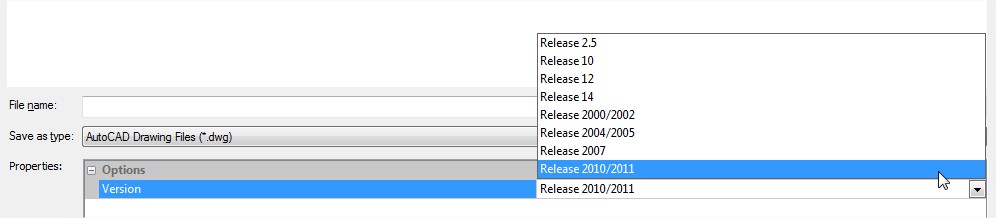

With the drawing open, go to MENU>FILE>SAVE AS or MENU>SAVE OTHER> SAVE COPY (Ctrl+F2)

In the dialogue that has opened, select the DWG version displayed, and a drop down list will display all the versions that can be saved. Choose the required one.

save drawing

Note: if the drawing contains any AEC objects and is Caddie 17 or later (2010 / 2011), saving to earlier DWG versons will require saving the AEC objects as "Proxy Objects". This is true for Caddie users or other DWG users.


drawing defaults

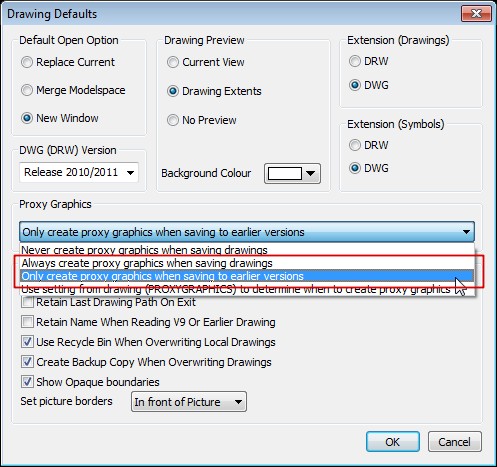

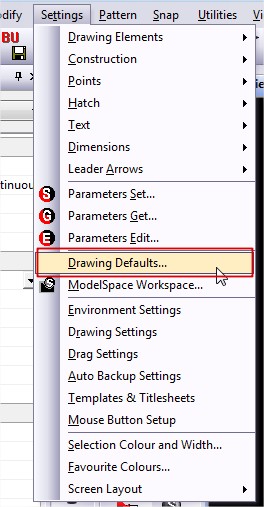

Select either of the two options shown in the box with the red line as shown below.

drawing defaultspo2


Creating and editing tables

Applies to:

Caddie 16 and later


How can tables be created user-definable rows and columns?


To create a new table, from the dropdown menus at the top of the Caddie screen select Draw -> Advanced Objects -> Create Table

To edit an existing table, from the dropdown menus at the top of the Caddie screen select Modify -> Advanced Objects and select the required command, or from Caddie 17 onwards just select the table and then choose the editing command from the context sensitive menu.

How Can I eMail a Drawing from Caddie?

Applies To

All versions of Caddie from Version 12


How can I email a drawing from caddie?


The method you use will depend which method you use to send emails (local client, such as Outlook, or web-mail). However if you use web-mail and want to send Zipped drawings read the Client Section.


I Have an Email Client

This command assumes that you are using an Email client such as Outlook, Outlook Express,

Windows Live Mail  or any other third party email client.

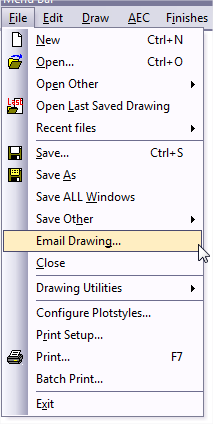

Select Email Drawing... from the File Menu.

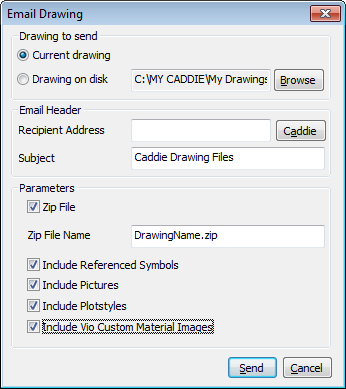

Set the parameters as required. If" "Zip File" is ticked you will also be able to attach any drawing used reference symbols, pictures, plotstyles and Vio materials.

As said this command assumes that you are using an Email client such as Outlook, Outlook Express,

Windows Live Mail  or any other third party email client. If try to use this method without having a client installed you may get an error when trying to send a non-zipped drawing

If you do have a client installed and "Send" is selected,  Caddie triggers your email client to create a new message which has the drawing, or the zipped file (which includes the drawing and selected attachments such as images) attached.



You can specify the recipient in the Caddie Email dialogue, or  if left blank enter it in the actual email. This is often easier as most email clients remember previously used email addresses and therefore save some typing.


I don't Have an Email Client, I use Web Mail

Sending and email using Caddie email only works with an email client. With Web mail you first have to run your browser and log-on to your web-mail site.

However you can still add a drawing or send a zip file as an attachment.

To add a drawing just use your web mail to create (compose) an email and select the attachment (usually an icon in the shape of a paper clip). Now just point to the file or files that you want to attach. If you want to send a zipped file you will first need to create it using a programme like Winzip or Winrar (there are many more available on the web).


Alternatively you could use Caddie to create the zip file.

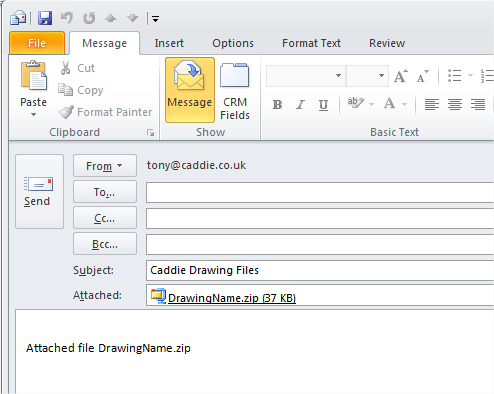

What is little known is that when emailing a drawing, within Caddie, if the ZIP box is ticked, a copy of the zipped drawing  is saved in a temporary folder and it is this file you can use.

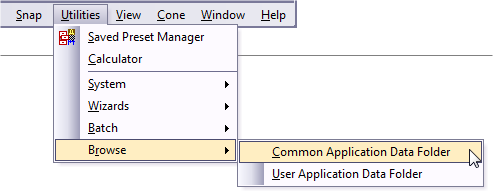

To find this file in Caddie 17, go to

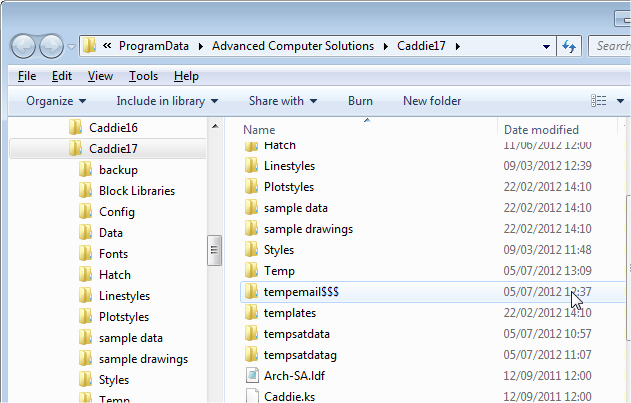

and look for a folder called tempemail$$$


In this folder you will find a zip file with the drawing name. Attach this to you web-mail using your normal web-mail attachment link.

Adding Imperial Measurement to a Dimension


Caddie 15 onwards


I have a requirement to show Feet and Inches in addition to the current metric dimension. How do I do this?


In Dimension Set go to the Alternative Units tab

Tick "Display Alternate Units"

Set the Unit format to Architectural

Set the Precision to 0.00 making this 0.000 will show 1/8" values

Set the Multiplier to mm>inches

Click OK and start using.

The alternative values will be in Feet and Inches


modify dimension style


If you are using styles first make a new style based on the one you want to change. and edit the new one. Don't forget to make the new one the current style

How Can I Store & Recall Zoomed View


All versions of Caddie* (The context menu option is from Caddie 17 Build 3)


Can I save and recall a zoomed view.


Yes this is done using the Store Zoom and Recall Zoom commands found in the Display section of the Caddie App or from Version 17 build 3 on the context sensitive menu.


With larger drawings, 3D drawings and AEC drawings getting the view on the screen as you previously had set can be time consuming. Using the Save and Recall views commands can save a lot of time, and take you straight to any orthogonal or perspective views you may be using,


Saving / Recalling

To save a view for future recall, use the standard Caddie Display – Store group of commands.  For ease of access the store view and Recall View buttons are also on the Context menu under Layers & Display







  • Presents a dialogue where you can give the current view a name. This will also remember if the view is perspective or non-perspective



  • Available from the Context Menu under Layers and Display. See Above
  • Recalls any previously stored view
  • Select the required view from the list and the OK.


Show View position

  • Only show views created on the WCS – in other words, as viewed for a 2D drawing, so not of interest here
  • Delete View
  • Deletes either the indicated or all stores views

Embedding a Logo Image in a Drawing

Applies To:

Caddie 16 and later


I realise that if my company logo is simple then creating the logo as lines, polylines etc. and hatch is the best way. However there are subtle shades of colour in my logo and it would look best as an image. In a .dwg drawing images are attachments to the drawing. This means that when I send the drawing to someone I have to make sure the images also go.

Is there a way where the image can be embeded in the drawing?


Images can be embedded in the drawing, but this method is best kept for very small images such as logos.

To do this use any Windows program that will show the logo on the screen. You can use the Preview function of Windows Explorer, Internet Browser if that is where you image is or a dedicated image editor. The important thing is to see the image on the screen.


Make the display of your logo about twice the size of  the final display size of  the logo. So if the logo is 50mm wide make the display of the image 100mm wide. Some programs allow the mouse wheel or Ctrl+mouse wheel to zoom in/out

Now you need to capture this.

In Windows Vista or Windows 7 there is a capture tool in "All Programs" "Accessories" called "Snipping Tool". or you can can use your favorite screen capture tool to do this.




Using the snipping tool select NEW and RECTANGLE. Now tightly select the logo.

Now we have captured it we to get it into Caddie.

Go to the Sheet where the logo is to be placed. From the Menu select "Draw |  Advance Object | Insert OLE Object and the "From Clip Board".

Indicate the bottom left  position of the logo. It will look too big so select it and right-click-scale. Dynamic scaling works the best. Select the lower left corner and then the lower right corner and drag this corner until the image is the right size. If this is going to be used a number of times make it into a block. and then insert it as a block reference.


The Sheet will show a border, but this doesn't print.



Inserting images this way is useful but scaling visual size doesn't change the embedded image size. The size of the embedded image will be the size of the capture, so keep the capture size as small as needed. every image inserted in the drawing will increase the drawing size.

Leaders (or other objects) show on screen but don't plot

Applies to

Caddie 12 and higher


Why do my leaders (or other objects) show on screen but not plot?


There are a number of reasons why they may not plot - here are some common ones:


1. The General | Plotable is set to NO.

This can be change to YES in the Object Properties dialogue, by first selecting the leader(s) that need changing and changing the parameter to YES

To Change all –

  • Use  “QUICK SELECT” from the context menu
  • Select Scope | Leaders | Plotable  |= | No
  • Use Object Properties


  • Change Plotable to YES



2. The line thickness is set to 0.0 (NONE) as shown below.




To Change all –

  • Use  “QUICK SELECT” from the context menu
  • Select Scope | Leaders | Thickness  |= | 0.00



  • Use Object Properties
  • Changed to a thickness of default



Quick Convert Lines And Arcs To Polylines

Applies to:

Caddie 17 Build 3 and later


I have a drawing and it contains many symbols that are created using a lot of lines and arcs. Is there an easy way to convert these lines and arcs to polylines to make the drawing smaller and more manageable?


Select the set of lines and arcs that you want to convert, then from the context sensitive menu select Make -> Polyline from Lines and Arcs

Caddie will replace the lines and arcs with polylines. If you want more control over the conversion, then you can use the Modify Mk->Poly command.

DTM Sections appear flat

Applies to:

Caddie 16 and later


Why do my DTM sections appear as straight lines when I know the section is not level


The most common reason for this is not using consistent units between horizontal and vertical dimensions. For example if all your spot heights are in metres but you scale the survey so that horizontally it is in millimetres then the horizontal scale will be 1000 times the vertical scale. Luckily Caddie has a vertical scaling factor for sections to allow for this. If your horizontal scale is in millimetres but your spot heights are im metres, just set the vertical scaling to 1000 and the sections will look correct.

Insulation And Other Linestyles Plot The Wrong Size

Applies To:

Caddie 16 upwards


My insulation lines look great on screen, but when I plot them they are massively oversized. How do I fix this?


For each sheet there is an option of whether to scale vector linestyles. If the insulation or car parking, or in fact any of the vector linestyles appear far too big, then ensure that you are in the sheet you want to change then go to Sheets -> SetSht and on the bottom right of the dialogue change the checkbox called 'Scale Viewport Linestyles'.


Why is the option there?


If you have several different viewports at different scales and you want the linestyles to look the same size in each (for example for a linestyle such as Center) then the checkbox needs to be switched off. However in the case of insulation linestyles etc., where they should be drawn according to the scale, scaling should be switched on.

Caddie won't open after the pc shuts down due to a power cut





If your Caddie is not opening when you click on the Icon, this article can help to sort this out.


Sometimes if you have a powerdip whilst Caddie was open or you restart the computer manually with the reset

button, Caddie may refuse to open afterwards.


What you can do to get Caddie working again, is to follow these steps carefully:

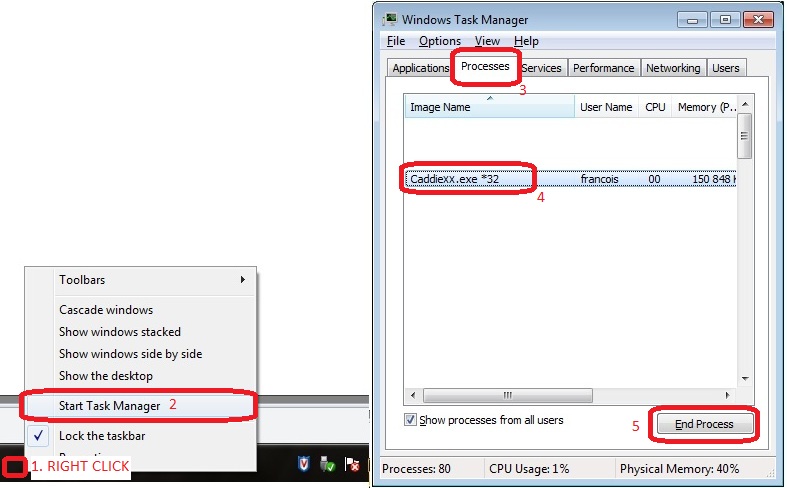

  1. Make sure all the processes are closed from Caddie in the task Manager. To do this, right click on the Task Bar at the bottom of your
    screen, and click on "Start Task Manager". Then go to the Processes Tab, select all the tasks that matches the version of the
    Caddie giving the problems and click on "End Process". For eg. Caddiexx.exe.

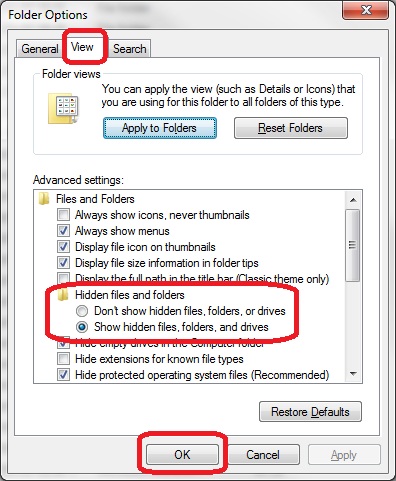

  2. Make sure your Windows setting is enabled to show your Hidden Files and Folders. To check that in Windows XP, open Windows
    Explorer (like My Computer), and click on Tools|Folder Options. In Windows Vista or Windows 7, click on Organise|Folder and
    search options. Go to the "View" tab and scroll down to the "Hidden Files and Folders" area, and make sure the "Show Hidden
    files, folders and drives" are ticked. You can also remove the tick from "Hide Extensions for known file types". Then click OK.


  3. Now, according to the version of your Caddie, browse to the user Application data folder. Here you should DELETE 1, and only 1 file.
    The filename you should be looking for is “cmds_count.tmp”. It looks like this in windows explorer:

    Find it, and delete it.


    Here are the paths for the different versions where you will find the file (Depending on your operating system):

    Caddie 14 - c:\Program Files\Caddie 14\ (ALL VERSIONS OF WINDOWS)
    Caddie 15 c:\Program Files\Caddie\Caddie 15\ (ALL VERSIONS OF WINDOWS)

    Caddie 16 – c:\Users\%username%\AppData\Roaming\Advanced Computer Solutions\Caddie16\
    Caddie 17 – c:\Users\%username%\AppData\Roaming\Advanced Computer Solutions\Caddie17\

    Caddie 16 – c:\Documents and Settings\%username%\Application Data\Advanced Computer Solutions\Caddie16
    Caddie 17 – c:\Documents and Settings\%username%\Application Data\Advanced Computer Solutions\Caddie17

  4. Now you can close all windows, and Caddie should be able to open normally again. If not, please contact Caddie Support to help you.






How do I convert Reference Symbols to Blocks?

Applies To:

Caddie 12 upwards


I have opened a drawing from another DWG user and there are lots of Reference Symbols in the drawing. I want to embed these references in the drawing so they become part of the drawing. How can this be done retaining the original grouping?


The easy answer is to explode the references. What this does is to replace the Reference symbol with real objects which the reference was displaying. The problem doing this is, if the symbol hadn't used patterns (DWG groups) there would not be any relationship between the objects and it would therefore be difficult to select all the objects now created.

What would be better in cases like this would be to replace the Referenced Syymbol with a Block. A Block Reference works in a similar way to a Reference Symbol, in that it shows a representation of the original objects. Where it differes is where the referenced objects are stored. In the case of a Reference Symbol the object are in another file, in a specified computer location. This means the Referenced Symbol has to be aslso sent to a new location (on other computer for instance).

Block however reference object already in the drawing

How can I get the I-drop to work with Google Chrome or Firefox?

Applies to:

Caddie 16 onwards.


I can only seem to get the I-drop tool to work with Microsoft Internet Explorer.


The I-drop tool uses browser objects that only work with the Microsoft Internet Explorer browser. Both Chrome and Firefox don't have the ability to display the I-drop objects. However there is a way to achieve this. The structure of both browsers allows the use of Extension (Add-Ons). In both cases there are extensions to add the Internet Explorer capability. Once these extensions are installed, any TAB can be made to look like an Internet Exporer tab and the I-drop tool will work.


For more information have a look at  http://www.ietab.net/

Nuts and bolts for structural steelwork

We do a lot of structural steelwork which involves drawing many nuts and bolts. Whilst we can use blocks and symbols etc. can't Caddie automate the process for us?


Yes Caddie can. The Mech application has a couple of tools for drawing hex head, socket cap and socket countersunk bolts and also nuts, washers etc.


Applies to:


Caddie 16 onwards.


Note: From Caddie 17 onwards the bolt command is further automated to add automatic size parameters and optional nuts.


Can I select all objects outside a rectangle?

Whilst it is very easy to select all objects inside a rectangle by simply ending all commands then indicating two points, can I easily select all points outside that rectangle?


There are a whole suite of tools that can be used to either select or mark objects and one of these does exactly what you are asking for.


From the Caddie Application main toolbar on the left hand side of the screen, choose the 'Select' command. If there is no 'Select' command hold down the Tab key and choose the 'Mark' command, which will change to say 'Select'


From within the selection commands, choose the MSRect command and then from the dialogue choose 'Elements Outside'. When you indicate two diagonals of a rectangle, Caddie will now select all objects outside the chosen rectangle.


Applies to:


Caddie 16 onwards.

Measuring in different units to the drawing

Applies To

Caddie 15 onwards


My drawing is done in mm but I need to measure some dimensions in inches. Can Caddie do this for me?


Yes, Caddie has a feature called 'Alternate units' for measuring. From the Measure menu on the left hand toolbar, select AltUnit. Choose your Drawing Units (mm) and Measurement Units (Inches) and tick the 'Show Alternative Units' tickbox, then when you measure something, Caddie will show the alternate units in bracxkets after the normal dimensions.


An example might be: Diagonal distance = 18381.2 mm  (723.669 inches)

How to show the extents of viewports in the Modelspace

Applies To

Caddie 15 onwards


We have a drawing from somebody with lots of viewports on the sheet. In the modelspace there are many similar parts to the drawing. How can we easily see which parts of the drawing the viewports refer to?


From the sheets menu on the left hand toolbar select the ShowVP command. Caddie will change to the modelspace and draw virtual boxes around the areas that the viewports refer to.


Note that only orthogonal viewports will be shown in the modelspace.

Changing the Pen or Line Style of a Block Reference doesn't change the objects in the block

Applies To

All versions of Caddie from Version 10


I change the pen or line style of a Block Reference, but nothing seems to change.


Firstly the properties that you are changing are those of the Block Reference itself. A Block Reference is an object in its own right. What you see displayed is the content of an indicated block table, which is in a hidden part of the drawing. Think of a Block Reference as a snap-shot of the block information. Therefore to change the property of the contents of a Block Reference you need to change the objects displayed directly.

As Block References are only snap-shots, changing the properties of the contents will affect all Block References with the same name.

So how do we change the pen of objects displayed in Block Reference? This will depend on how the pen for the object is specified and what the result should be. Firstly we need to determine what pen is being used. To do that we need to edit a block. By selecting a current block and with a right click (Context Menu) select EDIT. You can now do an object properties to find the object's properties. Don’t forget to end the block editing when finished (CONTEXT | ABORT | CONTEXT END EDIT BLOCK).

Most surveys specify the pens “By Layer” so as long as it is all the objects in a particular pen that need changing, the quick solution is to modify the layer assignment to the required pen. To do this, select the Layer Set dialogue fron CADDIE | SCOPE | LAY SET and change the layer asignments as required. This way, there is no block editing to be done, however if the lines need to be assigned to a new pen directly, then each block will have to be edited.

To do this we need to edit a block. You can either select a current Block Reference or the preferred method is to insert a new occurrence of the reference, (MENU | FILE | INSERT OTHER | BLOCK REFERENCE selecting the required reference) into the drawing and right click (Context Menu) and select EDIT. Select and change with object properties the objects to be changed. Don’t forget to end the block editing when finished (CONTEXT | ABORT | CONTEXT END EDIT BLOCK). Also if a temporay occurance of the Block reference has been used, don't forget to delete it as it is no longer required.

You may have noticed that not only can we have a direct pen assignment and BY LAYER, but one of the pen assignments can also be BY BLOCK. If that is the case, the objects assigned with this property will automatically take on the properties of the Block Reference, so the only editing that needs to be done is to the Block Reference itself.

The above applies to all object properties, including Line styles and Layers etc.

How Can I Sort The Order Of Layers In Any Of The Drop Down Lists?


There are a number of places where there is a drop down for layer selection. How can the order of the displayed layers be changed.


Changing the order of the layers in the dropdown selectors are all done by right clicking the layer box. As there are slight differences each is described separately.

The Layer Selector on the Standard Tool Bar

To change the layer order on this tool bar first select the black dropdown triangle. This expands the layer list.


Right click anywhere in the expanded list and you will see the order selection window.


Select the method you require.

The Object Properties Layer Selector

One of the properties of any objects is the layer. Selecting the dropdown triangle displays a list of available layers. The order of these layers can be changed by right clicking in the current layer bar, not in the dropdown list.. Choose the required order from the list.



Auto Layering Selector

The last method is also used for any dialogues that have the Auto Layering selector.

Here the Dimensions Set Dialogue is shown. Other dialogues include, Text Set, Hatch Set, Walls Set etc.


Layer Set Dialogue

Finally the Layer Set dialogue (SCOPE | LAYERSET) has a number of radial buttons which can change the order.


How is the display of the grid controlled


How is the display of the grid controlled?


Grid display is determined by a number of factors. The grid display and grid colours are controlled from the ModelSpace Setup in Settings.


To display the grid both the Show Border and Display Grid tick boxes need to be ticked.

Earlier version of Caddie allowed the colour of the border and the grid to be displayed independently. That is no longer the case. Grid colours are changed using the border colour dropdown. The Grid Line Colour dropdown no longer has any use.

Grid Parameters allows the size and angle of the grid to be changed. The value of the X and Y  dimensions is drawing units and will therefore be related to the current Base Units (which can also be set here).

If the Set Origin box is ticked, you will be asked for a new grid origin on exit of the dialogue. This origin is only the grid and is not either the WCS origin (which is fixed) or the UCS origin which is set by the UCS commands. This does , however effect the positioning of any grid snaps when used.



While on the subject of Grid Snaps, just remember that if the grid snap is ON the Grid Snap Icon on the status Bar will be set to Green.


When OF it will be the default GREY.



  • When ON the grid snap will take priority over other snap
  • When the grid snap finds a grid intersection a rectangular marker will be displayed
  • The grid does not have to be displayed in order for the grid snap to work
  • The grid is only displayed within the current border area but is available over the entire drawing on the current UCS
  • The origin of the border is placed on the current origin of the UCS
  • The border and hence the grid is place on the UCS
  • Once set, using the ModelSpace Setup dialogue, the grid can be turned ON or OFF from  MENU | SNAP | TOGGLE GRID ON / OFF. To save time create a keyboard shortcut ('G' in not current ly being used)

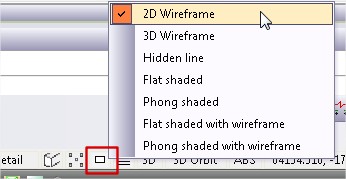

  • The grid is displayed as a series of DOTS when the render mode is set to 2D WIREFRAME
  • The grid is displayed as a wire grid in all other modes (3D render mode)
  • The current settings are saved with the drawing (which could be your template)

How can I produce a schedule of room sizes in my drawing?


In my drawing I have a number of rooms that I am required to provide area measurements of. I may also require to provide volume measurements. How can this be done in Caddie?


There are a number of tools within Caddie that can make area measurements.

From Caddie 15 a new set of tools were added which makes area and volume measurement not only easy to use but also allows dynamic changes based on the drawing its self. I addition the information is presented in tabular form.


This set of tools can be accessed from one of the regional 2D architectural applications.

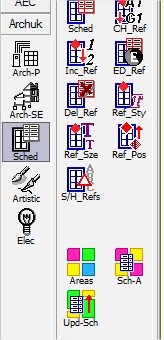

Those who use the SA Arch tools can find the measurement tools in the  'Sched' section.

Those using the ArchUK application can also find a 'Sched' section.

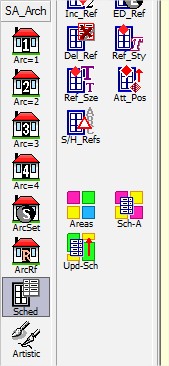

area1-saarch                D1area1-ukarch


Which ever one you choose the process and results are the same.

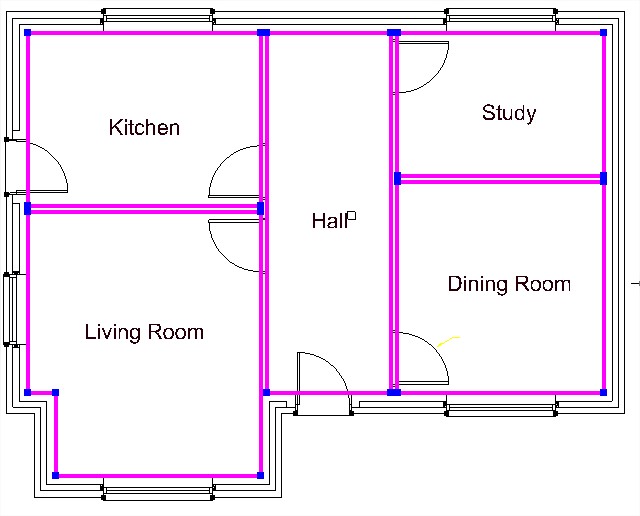

You are first asked to draw around the area using a polyline. All the normal polyline modifications are allowed, such as curves and the close command.


If the area is a rectangle just indicate the two diagonal points followed by an 'Option End' and Caddie will do the rest. Remember this tip, as it can used in many other places where the only option is to draw with a polygon or polyline, and you want a rectangle.


When you do an Option End after each indicated area, the following dialogue will open

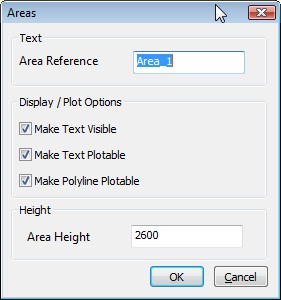

The 'Area Reference' is the room name etc. When the area is selected with the previous step a polyline is drawn.

The area reference text is placed in the drawing. This can be visible and / or plotable by ticking the relevant tick box.

The style the text uses is the current style as set in 'CADDIE | TEXT | TEXTSET' .

As this is standard text it can be edited and repositioned just like any other text.


If the "Make Polyline Plotable" tick box is ticked the polyline will plot.


If you require a volume also specify the height.

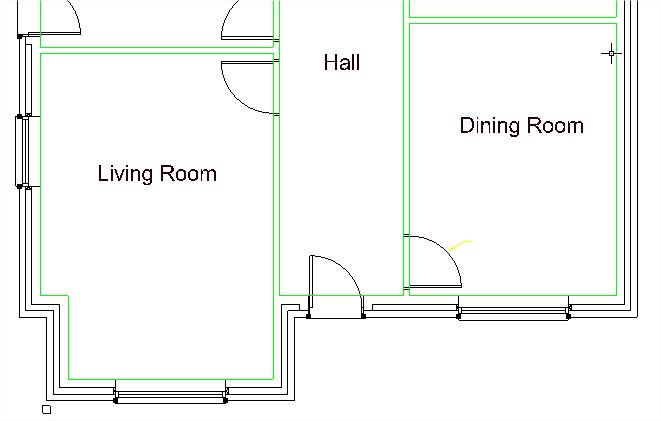

below is a typical selection 9the polylines are shown selected for clarity).

The room name were those specified in the dialogue above.




Once all the areas have been added, select the SCH-A tool and the following dialogue will appear.

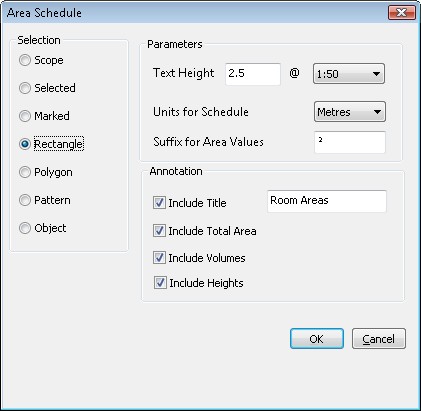

area schedule


Choose the selection area.

Set the Text height and scale value.

The Units are the units of the table areas and volumes.

Add a suffix to the value if required. Leave blank for none. Note a number of fonts may give none or different characters than the one selected. Choose a font in the TEXTSET dialogue, which contains the character you want to use. If necessary use the Windows "Character Map" tool form Windows Start | All Programs | Accessories | System Tools.

The tick boxes allow the selection of the column titles. If "Include Title" is ticked, give the table a name.


When completed select OK and indicate where the table is to be placed.

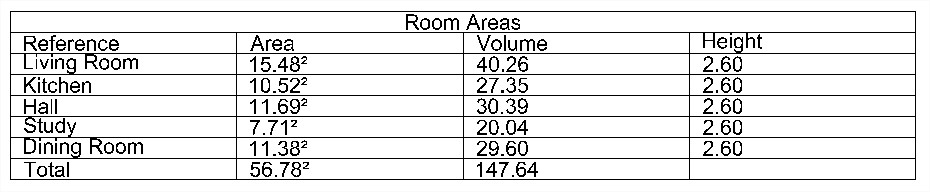

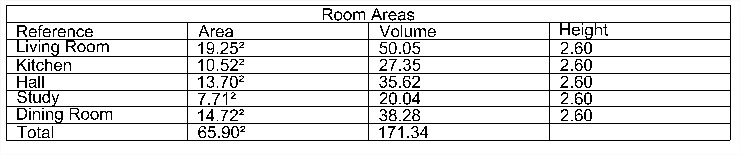

The result will look something like this.


If some changes are made to the area, such as a stretch by 1000mm in this example, all that needs to be done is to use the UPD-Sch command


Indicate which table you want to update, and the changed values will automatically be updated.


How Can Coordinates be Specified on the Command Line?

Applies To:

Caddie Version 11 and later


What are the different ways a co-ordinate can be specified.


Understanding the coordinate system in Caddie

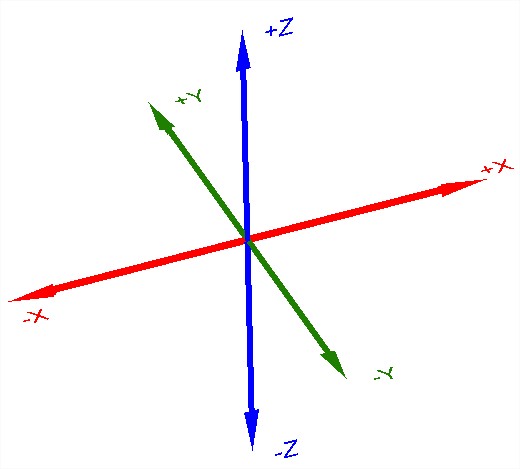

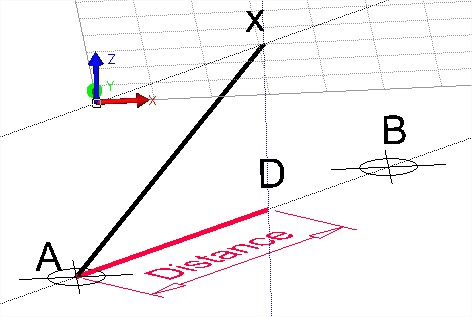

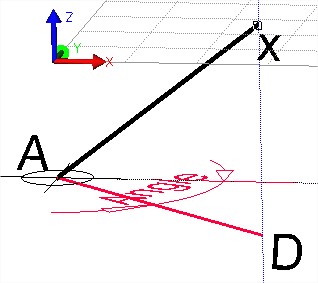

The coordinate system is based on three directions, “X”,  “Y” & “Z”. The point the three axis cross is zero and is known as the origin. Assuming a top view, the “X” axis travels horizontally, the “Y” axis vertically and the “Z” axis perpendicular to the screen.



Looking at X in the figure above, the point of intersection is zero, distances to the right are positive and distances to the left are negative.

The position in the drawing where values are calculated from can depend on the setting of the 2D /3D and  the mode flag we are using.

2D v 3D

Setting the 2D flag to 2D will override all height information and set the height to zero on the current UCS. Setting to 3D will take in to account any Z height values

Absolute v Relative

If we are using an absolute system (ABS on the status bar) the value will be bases on the current User Coordinate System (USC) origin.

flag absolute

When REL (relative) is set on the status bar, all coordinate measurements will be calculated from the current origin in the drawing (usually the last position selected).

flag- rel


Entering coordinate values in Caddie

Specifying Position (UCS)

The principle way is to specify the  X, Y & Z values. This is entered in the form of
Caddie requires the first two values to be specified (X & Y) and an optional Z value. The Z value can be omitted if the value is zero.

If REL is set the Z value will be ignored and the height set to zero on the current UCS.

Specifying Position (WCS )

If the x,y,z value is prefixed with a hash (#) the values will be measure using the World Coordinate System (WCS) as the reference.


If REL is set the z value will be ignored and the height set to zero on the current UCS.

Specifying a Single value

If a single value is specified followed by a return, the value will only be the distance . The direction will be dependent on the current position of the cursor. If a snap is indicated, this snap point will be used for the end direction.

The 2D / 3D flag will have an effect on the length of the line.

Look at the illustration below. The UCS original position is at the height of the two construction points and the lower construction line. With the 2D / 3D flag set to 3D a line was started at the construction point A.  Setting the flag to 2D the second position was specified with only the distance and the snap set to the construction point B. What has happened is the distance has been correctly used (Point D) but the line has been drawn on the offset UCS (x). The vertical (blue) construction line clearly show that the second point is vertically above the specified distance from point A.


Specifying a Distance and Angular Direction (UCS)

To enter a distance and angular direction use the form
distance 3000<-30 will give a value from the current origin of 3000 with an angle of -30 degrees. This is based on the UCS.

The 2D / 3D flag will have an effect on the length of the line but not on the angle. Look at the illustration below. The UCS original position is at the height of the two construction points. With the 2D / 3D flag set to 3D a line was started at the construction point A.  Setting the flag to 2D the second position was specified with only the distance and angle (distance


Specifying Using the Keyboard Arrow keys (UCS)

On the keyboard there are four Arrow keys. Up, Down, Left and Right. Entering a single value followed by one of those four keys, will set the next origin at the distance specified and in the orthogonal direction (UCS) indicated by the key pressed.

The 2D / 3D flag will have an effect on the length of the line. In a similar way to the two illustrations above. A line is started, with the 3D flag set and the first point indicated somewhere other than on the UCS. With the UCS offset and the 2D flag set the point is specified with a value and a cursor key on the keyboard. The line will be attempted to be drawn with the distance and direction stated. However because the UCS has been offset and the 2D flag is set, the end of the line will be on the UCS vertically above the apparent end point.


Calculations in Dialogue Boxes

Applies To:

Caddie 15 and later


How do I do calculations in dialogue box fields?


Depending on the complexity of the calculation and the input field type you can type it straight into the dialogue box field or alternatively you can use Caddie's inbuilt calculator to do more complex calculations.


If the field is a simple numeric input box you can type in a calculation and then either hit F2 or Enter to see the result.





34 * 29

2 * 6 / 23

15 * cos(30)


For more involved calculations, or if the uinput box is a dropdown list, access the calculator by right clicking the field and selecting 'Calculator' from the dropdown menu.




When you right click on a dialogue input box you will often see 'Buffer' on the dropdown list. This is also available on many dropdown list boxes too, but on these you must right click on the small downward pointing triangle to the right of the list box.



How to Add Separator Bars to custom Tool Bars

Applies To:

Caddie 15 and later


I have created some custom toolbars, What would be nice would be to divide the tool bar up into groups of tools. how can I do this?


First edit a custom tool bar by right clicking any of the tool bars and selecting "Customize".

Icons on the tool bar can be removed, simply by dragging them off the tool bars, or reordering by dragging to a new position.

There are two methods to do this.


Using the mouse.

Offseting icons slightly to the right forces the insertion of a group separator bar.


To do this grab an icon, to the right of the position where you want to insert a group bar, and move it about half an icon position to the right.


If you see an "I" bar then you have gone too far, so move a little to the left until the "I" bar disappears.


If you see figure 1 then you can let go and a group bar will be present on your tool bar.


If the tool bar is "floating" the group bar will extend the full width as shown in the example below.


Removing a Group Bar

To remove a group bar just select (whist in customize mode) the icon to the right of the bar and move it a half icon to the left.


Using the context menu.

Enter the "customize" mode as above.

Right click on a command icon, which will be the foirst in the new group, and select Begin Group from the menu.

This will automatically add a group bar in the toolbar, just before the selected command icon.



Removing a Group Bar

Right click the first icon in the group and un-tick the Begin Group option.

Why are multiple objects selected when a Caddie drawing is opened in another program?

Opening a Caddie drawing into other CAD programmes causes multiple objects to be selected when selecting a single object.


In caddie we use a function called Patterns. This is function logically associates all the objects in the Pattern by assigning a unique name all the Patterns objects share. The objects in a pattern can be manipulated (copied, moved, rotated and have their properties changed etc.) either individually, or by using a Pattern command, all at the same time (like a group) without physically locking them together as Blocks would do. This functions is also used by other DWG based drawing systems but the function can have different names, typically “Groups”.

What happens with Patterns (Groups) when opening a DWG drawings in another programme

When opening a Caddie generate drawing in other programs the functionality of Patterns remains the same as it does in Caddie. However the default way in which these are handled in these other programs can be different. For instance some other programmes default to selecting all the objects in a group (pattern) when a single object is selected. To the untrained eye this gives the appearance that the objects are block when in fact they are not.

How to Change the way Patterns (groups) are handled in other DWG programmes

To change the way these groups (Patterns) are treated you may need to check  with your software user guide to find what the control is to change the “Select All” function.

As an example you may find that you can toggle group selection on and off by using a keyboard shortcut such as  CTRL+H or SHIFT+CTRL+A. Some systems also have settings in the options dialogue for selection. Look for something like “Selection of Object Grouping” or “ Object Grouping”. Also look in your products user guide for the System variable such as “PICKSTYLE”.

Searching the internet using your favourite search engine for “Object grouping DWG” or “DWG PICKSTYLE” will also turn up a number of useful tutorials and help pages.

How To Have a Single Click Selection of Patterns (Groups)

You might be interested to know that the single click selection is an option in Caddie. To set this up go to 'MENU | SETTINGS | MOUSE'. Selectio the 'PATTERN SELECTION' option from the left Single Click drop down.

mouse properties


Changing Views if the Drawing is Skewed or Rotated

How do you change the views of the Drawing?


When working on a 2D drawing you probably only want to view the drawing by looking down on it. When working with a 3D model you will often require to look at it from different angles.

To change the view to TOP view you can use the TOP command in the 3D application under 3D VIEW (see below)


As TOP is the command used the most and usually required when drawing in 2D this command can also be found on the top menu bar:

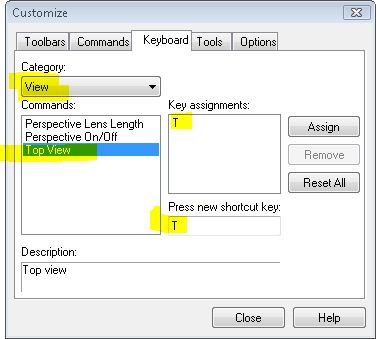

A tip here is to create a keyboard shortcut of 'T'



While here we will look at the other 3D View commands related to viewing

The first set are the pre-set positions.




For intermediate control we need to use that other view commands.

The first set of commands are the ROTATE commands.

You can rotate either LEFT or RIGHT.

Each Click is approximately 5 degrees



As this is a little time consuming, you can use the mouse by holding down the CENTRE button (the wheel) and the keyboard SHIFT at the same time and moving the mouse up or down the screen..


The next set of 3D View commands is ORBIT.


You can Orbit UP, DOWN. LEFT & RIGHT.


Again as this is a little time consuming, you can use the mouse by holding down the LEFT button and the keyboard SHIFT at the same time and moving the mouse around the screen.


Another tip well worth knowing is the Zoom. Most people know about using the wheel on the mouse to zoom. When working on a 3D model and in particular when perspective is turned on, the wheel is maybe too course. An alternative is to hold down the CONTROL key on the keyboard and the LEFT BUTTON on the mouse together and move the mouse up and down.


And finally PANNING can be achieved in much the same way, only instead of using the CONTROL key use the ALT key.


Text Styles Explained

Applies to

Caddie 15 and later


What are Text Styles and how do they work.


In Caddie all text has a style. A new blank drawing (created without a template) will have one style. The default Text Style is “STANDARD”. Accessing the settings for the style can be either from the Text Set dialogue (see below) or from the Dimension dialogue (see the end of the article)



Default Value


Style Name


The name given to the style. The maximum length is 255 characters.



Can be Vector (SHX) or True Type (TTF)



The height of the text. Values >0 will override any individual heights set by ‘TextSet’. Normally set to 0

Width Factor


1 is the designed width of the font. Values 1 expand the text.

Oblique Angle


The skew  of individual characters.


NEW styles can be created and the settings will be based on the default settings as shown above.

DELETE styles will delete only unused styles.

RENAME styles allows the renaming of any used styles.

Where Are Styles Stored?

Styles are a part of the drawing. Sending a drawing from one DWG user to another will also take the styles.

In the same way Text Styles can be within a template, making them available for any drawing that uses the template.

How Do I Get Existing Styles Into a Drawing?

Styles can be copied from one drawing to another by

  1. Copying any text with that uses the style to the clipboard and pasting into another open drawing
  2. Saving  text with the style as a symbol and inserting a symbol into another drawing
  3. Using the component manager

Note: If a text style name already exists in the drawing the one in the drawing will be used and not the imported one. To avoid this rename the style in either drawing before combining them.

Using Text Styles

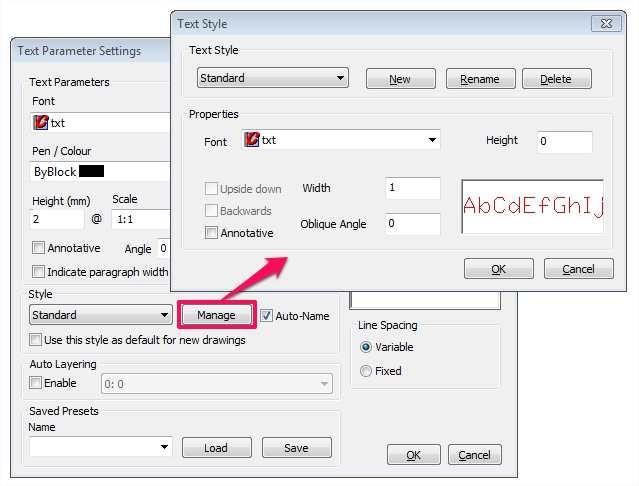

You can select the text style from the TextSet dialogue. In the same dialogue you can also make the current style the default.

When entering text from the Text Editor (EntEntr) you can choose the style from the Style dropdown.

How to ensure you have the same styles available for all your new drawings.

Using a template can be a great way to ensure you always start a drawing with the settings you prefer to use. Text styles saved in the template will be available for all drawings using the template.


As mentioned above, the size of the text will depend on the size set or the OVERRIDE size, see the table above.

Text Styles are use by Dimensions

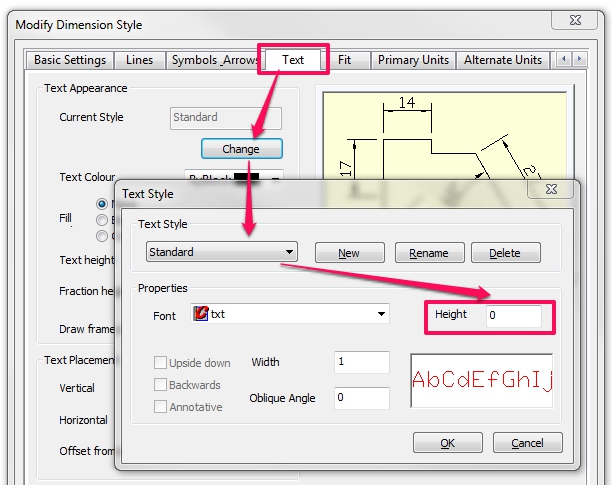

Dimensions also uses Text Styles to display the the text element. The text style may also be used for general MText. If the style is change in the Text-->Manage Styles, any dimension using the text style will also change. For a given dimension style both the text style used or the parameters of the text style can be changed using the settings in the dimension settings dialogue (see below).  Again if the size of the text has an override, the dimension text size will be fixed at that size.



How can I import co-ordinate values from a file

Applies to

Caddie 14 and later


How can I import co-ordinate values from a text or Excel file.


Within the Survey Application there is a command specifically designed to import data from a text or excel file.

To access the survey commands the Survey Application ('Surv') needs to be loaded. If this haven't been loaded, right click on and application name (such as Caddie or 3D etc) and select Survey from the list. If you can 't see it is the list , it has already been loaded.

Before importing the data a few points need to be understood. Firstly the model units will need to be changed to the units used in the data file. So for instance if the data was specified in metres, the model units will need to match. Also any text that will be added, such as point names, will be placed at the current settings of text (from TextSet). So again if the units are to be metres, ensure the text is also set to metres (2mm = 0.002M). The font used will also be the font used by the insert data dialogue.

Select the Sur=2 group

Select 'CrdImpt'



When this command is run for the first time, you will be taken to the survey mode setup. You can also set this up at any time by using the 'Sur=1' command 'SrvMde'

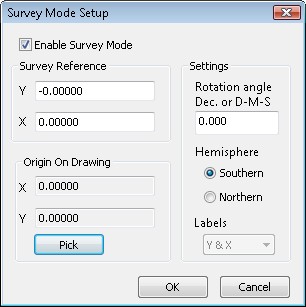

survey mode setup

The origin on the drawing is the position that the imported measurement will be made from. if you use the default, the position will be the origin of the drawing (0,0). To chose another position, use the PICK button and select the required drawing position. To set it back to 0,0, use PICK and typ 0,0 (in ABS) as the value.

Choosing the hemisphere will determine the direction of the imported measurements. If in the northan hemisphere, also choose whether to use Eastings & Northings (E&N) or Y&X lables.

Once you are happy with thes settings, select OK and you will aksed which file to use for the data. This would normally be a TXT file but excel files can also be used.

Once selected the dialogue opens where you can set out the way the data should be used.

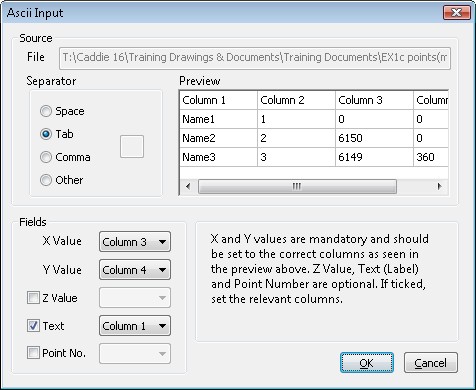

survasy ascii input

Change the settings as required and select OK. Contruction point will be place in the drawing, at the origin originally specified in the Survey Setup, which can be snaped to, to draw lines etc.


Why do my dashed lines look continuous

This applies to Vector linestyles (those that do not start with a 'P' in the name). There are a number of possible reasons for this.

  • In order to speed up the redrawing of the screen, Vector lines will only be displayed with the line style when the zoom level is sufficient to show the style. A 'REGEN' will probably need to be executed before the line styles show. The converse is true when zooming out. Vector lines will show dashed untill a 'REGEN' is executed.
  • The more common reason for vector lines showing as continuous lines is the render mode selected. On the bottom status bar the rendering mode can be changed. Only 2D wire frame (depicted as a rectangle icon) will show vector lines correctly.


 chaaging rendermode


  • The render mode chosen also effects solid fill hatches and opaques With a 3D render mode chosen only lines for the edges of the hatch or opaque will show.

Why don't Opaques mask objects behind them on some drawings?

Opaques will only mask the objects behind them if the display mode is set to 2D Wireframe. This is controlled by the icon at the bottom of the screen. Click the icon to change the setting.



Objects on planes above the Opaque (typically drawn after it) will not be masked, unless you change the display order to move the Opaque plane above the objects (or move the objects plane below the Opaque). You can change the display order using tools in the 'Edit' Menu

How are objects displayed in Caddie - Understanding Display Modes

Applies To

Caddie 15 and later (some commands will be found in earlier versions)


I can see that Caddie displays the order of objects in different ways. How is this done and can I change the display order.


Caddie has a number of display options available. These are accessed either from

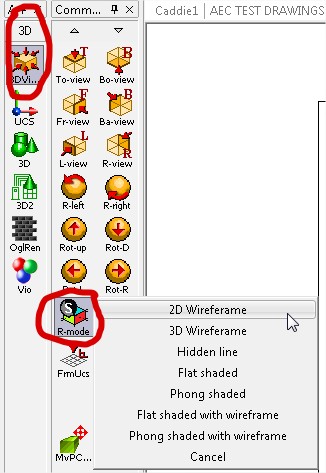

render mode 3ddisplay

or from the status bar.

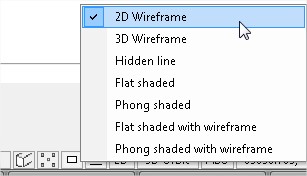

render mode sb

2D Wireframe is the only 2D rendering mode and displays objects in a different way to all the other, 3D, modes. The 2D wireframe rendering mode is the main subject of this artical.

2D Wireframe

In this mode every object drawn in Caddie will be drawn on its own display plane. In Caddie all new objects will be drawn on the top most display plane, that is the nearest to the viewer. So if a line is drawn followed by some text, the text will appear to be on top on the line.

The display order may not suit the way you want objects to appear. In the case of hatch, usually you would want to show the hatch behind any lines used to create the hatch path. For hatch only there is a way to override the default front plane positioning by going to the HATCH SET dialogue, where you will see the opportunity to set hatch to the back plane.

The hatch commands also include a set of commands where existing hatches can be moved to the front, the back, in front of an object, or behind an object. More details of these can be found in Caddie help.

hatch mov

All other obects will be drawn on a new front plane. You can rearrange these with a similar set of commands found in 'CADDIE | EDIT'. These commands will do, what we did for hatch, for all objects.

display order

A typical senario where you will need to move the plain position of an object is when adding Opaques to a drawing, for instance behind a window. As has been mentioned, the opaque will appear above the window, which is not what we want. A good way to resolve this is to make both the window componants and the opaque into a new pattern.

From the pattern set of commands there is the Reorder command. This command reorders the selected pattern so any opaques are sent to the back plane of the pattern, and crucially not to the back of the drawing..


It might be a good time to also mention two other Pattern commnds that also change the plane order. These are To-Front and To-back.

pattern order

To-Front move a whole pattern to the front keeping the current order of planes. To-Back does the same, but to the back.

One further and very important command can be found in the EDIT commands. This is the REORDER command.


The advantage of this command is you can have different selections


and you can change the plane order based on the object types. Only the object types of the selection will be shown and using the Forward and Backward selections the object groups will be moved keeping the original object plane sequence.

reorder objects

3D Rendering

Whilst not the subject of this FAQ it is worth understanding that only 2D wireframe uses planes. In all other rendering modes it is the spacial position of objects which effect the display.


Caddie won't do a backup or save a drawing.

You may be running Caddie in Professional, Budget  or Educational mode, but Caddie won't allow you to save drawings,

If you get the message that the file is read only and it is i.e. opened somewhere else or from a read only drive, such as a CD,  you should be able to save it to a different drive or folder. or with a different name or at least to the desktop or root of you local machines drive if it was opened from a writeable drive.

If you can save it locally but you can't save to a network drive, this indicates a network problem.

You can't save any drawings that have been opened from a CD (or read only device) back to the same or another read only device.

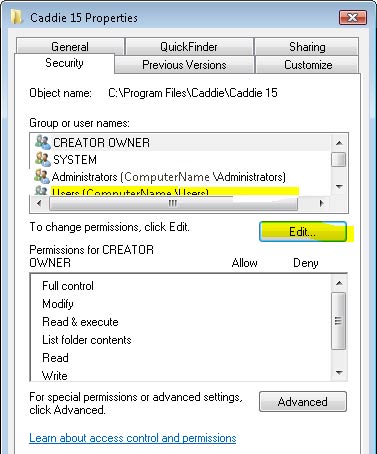

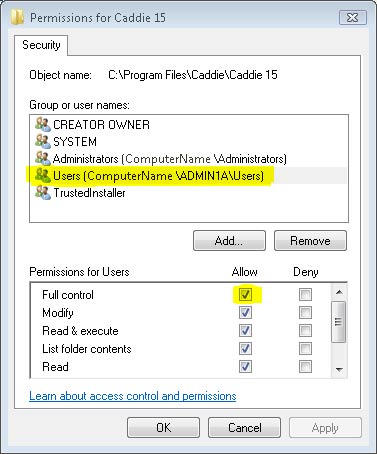

If you try to save a drawing and it says it is read only even if you do a Save As with a new name, it is likely that the issue is not the drawing or the folder but a privileges issue.

A classic scenario is to log on as a guest. Guests, by the nature of what they are, do not have any privileges what so ever, and you will always get the massage when trying to save. Caddie isn't  even allowed to do a Backup. A test for this is to try and do a forced backup (FILE | SAVEOTHER | BACKUP NOW).



Blocks - Converting to Patterns

Applies to

Caddie 14 and later


I have been sent a drawing that was created in another CAD system and all the patterns have been converted into blocks. I would like to remove the block information but retain the pattern information. However when I explode the blocks the objects are not in patterns. How can I explode them and keep thep logically together as patterns?


If you only want to explode a selection of blocks, first restrict the scope by selecting the required blocks. The way this is done will depend on the drawing. For instance you may be able to restrict the scope by layer, colour etc,. by using the QUICK SELECT option on the context menu. From Caddie 16 the context menu also has the LAYERING & DISPLAY options that may make this easier.

context ld

If it is the whole drawing then selection is not an issue.

The next step is to explode the blocks.

To do this go to the EDIT commands and choose Global Explode

global explode

Choose your selection, entities (in this case blocks) and tick the "Explode to new patterns" tickbox.

Caddie will explode all the top level blocks in the selection. If there are nested blocks  you may need to do this more than once.

Further Information

Even though the block references have been exploded, the block information is still in the drawing (in the block table). Unless you require these block again it is worth removing them, to keep the drawing size down. To remove the blocks go to


pack drawing

If there are unused blocks in the drawing, 'Blocks' will have a '+' sign next to it. Click on the '+' and either select all of the blocks or the individual ones. You can use the control key to select. Once selected, click PACK.. After packing the blocks, nested blocks may be revealed, so you may need to run the process again.

How do I rotate the text in a dimension

Applies To

Caddie 16 and above


I have a dimension where the text would be better at 90 degrees to the arrow line. How do I do this?


This can be done, but only on dimension text that is horizontally aligned.

If need be go to the DimSet dialogue, go to the text tab. Select Text Alignment = HORIZONTAL.

Close the dialogue by selecting the OK.

Draw the dimension(s) as normal, or edit an existing one (DimEdt).

Select the dimension you want to change and go to object properties. Look for the field 'HorText Align' and change the angle to 90 degrees (or any other angle). This will affect all the selected dimensions.


This is an override and it will not affect future dimensions, even after a GETDIM therefore a DimEdit doesn't have any effect. Also note that if global styles are used, a change in the dimension text angle will only affect the selected dimensions and not any other dimensions using the same style.

Caddie Command Modifiers

Using the TAB key, Ctrl key and ‘1’ key to modifying the way Caddie commands work

The TAB key and other modifiers are used in many places within the Caddie environment. The function of these keys is dependent on the command you are using currently.


Draw Lines

Holding the TAB key whilst drawing lines using Draw or Auto locks the angle to increments set in the ‘MENU | SETTINGS |DRAG SETTINGS’ dialogue.

Lines | Rectangle

If the TAB key is held down when selecting ‘CADDIE | DRAW | RECTANGLE’ a modifier is applied to toggle the rectangle to be drawn the alternate option of either a single Polyline or four Lines, dependent upon the current default setting.  Note the setting to determine which option is default is contained within the Registry settings.

Construction lines

When drawing construction through two points (CADDDIE | CONLINES | PNTS-2) the second point is locked to the drag angle.

If drawing a "X" , "Y" or a "Z" construction lines you can specify the end point of the first line, which is then used by all the subsequent ones.

If drawing a line at an angle (CADDIE | CONLINES | PNT-ANG) the construction line starts at the indicated point and is drawn at the specified angle.


Any form of dragging will lock to the drag angle as set in ‘MENU | SETTINGS |DRAG SETTINGS’ .

Text | Enter

You can specify in the text set parameters dialogue if you want to be asked for the paragraph width when entering text using the text editor. Whatever you have set here will be negated if the TAB key is held down when entering the text editor (CADDIE | TEXT ENTEDTR).

Patterns | Initialise

If the TAB key is held when Initialising a pattern USING the keyboard ‘i’ or ‘selecting the initialise command (CADDIE | PATTERNS | INTIAL) a dialogue box will be displayed and the name of the pattern can be specified.


Scope | Layer Display

If the TAB key is held down when selecting Layer Display (CADDIE | SCOPE | LAYDISP) the scope will be set to the layer of the next object that you select.

Scope | Patterns (Selecting Multiple)

Using the TAB key when selecting patterns for SCOPE (CADDIE | SCOPE  | PATTERN’ allows more than one pattern to be selected for SCOPE. After selecting the Pattern command from the SCOPE menu you will be prompted to Pick patterns to place in scope’.  To select multiple patterns, depress the TAB key during the selection process then release prior to selecting the final pattern required.  Selecting the same pattern twice will de-select it form the list. Alternatively, to finish your selection and draw the selected patterns to the Scope, press ENTER.

Hatch Origin

You can customise the position the a hatch origin by using the combination of TAB and using ‘CADDIE | HATCH | AUTO’. The default position of the hatch origin is 0,0,0 (the bottom left corner of the model space grey rectangle, or a sheets bottom left corner). If the TAB key is pressed at the same time as clicking the ‘CADDIE | HATCH | AUTO’, you will select the hatch method (inside, endpoints or closed object) then place the hatch in the require way, and then the islands followed by an option end. The next prompt you will get will ask where you want the hatch origin. This is on a one off basis. Selecting the space bar which starts the last command does not show the origin select prompt. You have to press the TAB key and click ‘CADDIE | HATCH | AUTO’ to do that.

Rectangle by 3 Point

By depressing the TAB key at the time of selecting Rectangle by 3 Points (CADDIE | DRAW | REC3PT), you can predefine an enclosing area for the rectangle, additionally, specifying the units for this area, which may be different from the Drawing Units.  Perfect for preparing scheme drawings where outlines of room or buildings are required, meeting specific area criteria.


Control (Ctrl)

Context Menu | Move and Copy

When moving and copying objects using the Context menu, and additional Dynamic Rotate function is added to the end of the command by depressing the Ctrl key at the time of selecting the tool.  Useful for moving / copying objects and then aligning these to boundaries, for instance.


Number ‘1’ key

Nearest Object Selection Override

You may force Caddie to adopt Rectangle Select rather than Nearest Object Select by depressing the number ‘1’ key prior to commencing your selection.  Extremely useful if your drawing contains many objects in close proximity to the area you want to select, or the point at which you wish to start your selection rectangle includes a hatch object.

I Have Lost a Top Menu Option

Applies to:

Caddie 12 or later


I was creating a tool bar using the customise option (right click a top tool bar), and deleted, rather than copied a menu option  How can I get it back?


Save any drawings and close Caddie and open Caddie. Do this once more and you should see the missing menu.

Alternatively go to 'MENU | SETTINGS | SCREEN LAYOUTS | RECALL SCREEN LAYOUT' and select the required layout. The "Original" layout is the one created when caddie was installed. If the Settings menu is missing, you will need to use the first suggestion.


Caddie and Windows Vista & 7 Security

For some operations, when running Caddie on Windows Vista or Windows 7, additional permissions over and above the standard user permissions maybe required. These operations may include:

  • Saving and restoring a screen layout
  • Automatic Backups

Allowing Caddie additional permissions only effects the way Caddie works and does not alter the security of any other programmes. Allowing Caddie to have administrator privileges can be achieved in a number of ways:

The first is the right click on the Caddie launch icon and select 'Run As Administrator'


However this will have to be done every time Caddie is launched.

There is permanent solution.

Windows Vista

Using explorer, go to the Caddie folder. A quick tip is the use the 'Windows Explorer' link in the Caddie Help dropdown. This will take you directly to the correct folder. Find the Caddie 15.exe file and right click it. Select the Compatibility tab and tick the 'Run the program as an administrator' tick box.



Windows 7

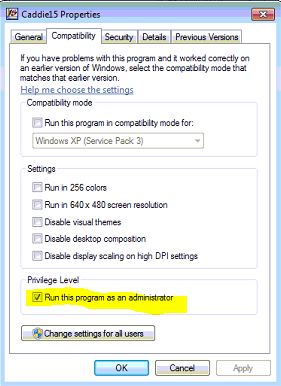

Right click on any Caddie 15  program or short cut icon and select properties. Select the Compatibility tab and tick the 'Run the program as an administrator' tick box.



For Both Operating Systems

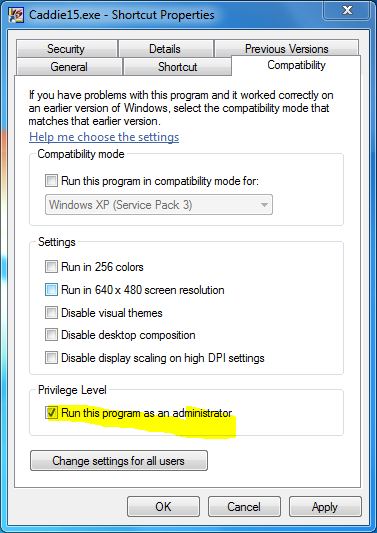

If you have more than one user logging in to use Caddie, select the 'Change settings for all users' button. Now select 'OK' and you should find, when you run Caddie, you can save, or recall, a screen layout.


In addition you need to set the access privileges to the Caddie 15 folder. To do this use Windows Explorer and navigate to the Caddie 15 folder. As mentioned above the quick way to find the Caddie 15 folder is to use ‘MENU | HELP | WINDOWS EXPLORER’ which takes you directly to the correct folder.

In the left pane, right click the Caddie 15 folder and select properties.

Select Edit




Select User ( etc....) - The name will be the current user.

Tick the 'Allow - full control' box and 'OK'




My Caddie Line styles are missing or not in the list.

This is applicable from Caddie 10 onwards


When the drawing was saved previously, either in another CAD package or in Caddie, it is likely that the drawing was packed.  This means that all unused items were removed from the drawing.  You just need to bring it into the drawing again.


To do this, follow these steps:


Click on “Settings”-> “Drawing Elements”-> “Import Line Styles”

From this list you can click on the either select the desired line style to import, or click on the “Select all” button, and make sure all the line styles are selected, and then press “Ok”.

All the linestyles selected should be in the list now.


See images for reference.




Using the Scope Toolbar

The Scope Toolbar is often underused or is just not understood.

If you are not familiar where this toolbar is, you should find it some where in your screen layout. Find the bar the looks like this:

scope tb1

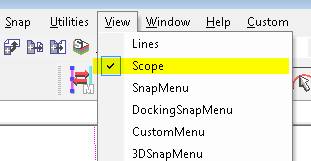

This bar maybe docked or (as shown) floating. If you don’t see it check you have it turned on (a tick next to the name) from


  scope tb2

Once you have identified it you will notice there are 9 icons – one for each of the finishes. Hovering over each icon will tell you what they are.

scope tba

So if you need to temporarily hide all lines, arc, circles and polylines etc. select the first icon. When selected you will notice the DOT changes to RED.

If we select it again the DOT goes GREEN and all the lines are showing and active.


So to apply this to hatch, we select the Hatch icon and  its dot changes to RED.

scope tb3

Any hatch in the drawing is now hidden from the scope, in other words, hatch is non-active. This means that anything done to the drawing, such as selection and move, doesn’t affect the hatch.

Therefore after a move, turning the Hatch (Scope Bar) ON (Green Dot) the hatch hasn't been affected by the move

scope tb4

It is also useful to be able to turn off certain finishes when drawing, such as hiding 3D objects, Pictures (includes Opaques), Symbols (Blocks and Reference Symbols) etc. to make selection or modifications easier – “seeing the wood for the trees”.

Also vast amounts of hatch can slow down moving around a drawing, so hiding it temporally can speed up drawings.

NOTE: If any of the scopes are turned off in the model then sheet viewports will not be able to see the hidden objects. So when working on the sheet turn on the Scopes in the model space first.

Setting these scopes in a sheet only effects the sheet where they where set – they are not global. The same is true for the Model.

Also note that the SCOPEALL command or indeed any of the other SCOPE commands effect the status of this toolbar.

Saving a Copy of Your Drawing With a Different Name

Applies To

Caddie 16 and above


I would like to save a copy of the drawing that I am currently working on as a copy with maybe a different name or with a different path. When I do a 'FILE | SAVE AS', with a new name or / and a new path, the current drawing name or path changes. This means that a subsequent save will save the drawing with the incorrect information. How do I keep the current name and make a copy somewhere else?


For Caddie 16 there is a new command, which is 'FILE | SAVE OTHER | SAVE COPY'. Using this command a copy of the current drawing is saved with what ever name or / and folder you want, but the current drawing name  and / or  folder is preserved. Therefore a subsequent 'SAVE' will use the original file name and path.

How do I load different applications?

Right click on an existing menu header:


and choose 'Load Application'


Change the Format of Text using Special Characters


Applies to

  • Caddie 16


How can you change the format of text within a paragraph of text?


The DWG format allows MTEXT, the text type mostly used in Caddie, to contain overriding formatting codes. These formatting codes are included with the text and allow enhancements of the characters or words.

If you want to enhance text in a text block (MTEXT) you can edit the text and the require part of the text block can be enclosed with {} and include control codes. So you may want to change some text in a sentence to be  have over scores, a different font or a different size etc. The codes used for MTEXT formatting are shown below.

Codes for formatting

Text Format Code


Entering the following …….


Changes to the text height specified in drawing units

{\H2x;This is a test text Current Height x 2}

Result   :



Changes the text height to a multiple of the current text height

{\H250;This is a test text Height 250}

Result   :



Adjusts the space between characters, from .75 to 4 times

{\T1.5;This is a test text Character Spacing x 1.5}
This is a test text Character Spacing x 0.7}

Result   :



Changes obliquing angle

{\Q15;This is a test text Oblique Angle of 15°}

{\Q-15;This is a test text Oblique Angle of 15°}

Result   :



Changes width factor to produce wide text

{\W0.8;This is a test text Width Factor set to 0.8}
This is a test text Width Factor set to 2}

Result   :



Changes text specified colour

{\C5;This is a test text Pen 5}

Result   :


\0  (on)
\o (off)

Overline        ON / OFF

{\OThis is a test text with Over Line}

Result   :



Super Script

This is a test text with {\H0.5x{\SSuper scipted^ ;}} Text


Result   :

\L...\l Underline This is a test of \LUnderlined\l text

Result   :

 This is a test of Underlined text

Braces can also be nested to create complex changes.

This example describes how the text in the following illustration was created.


{{\W1.5;The {\H2x;Quick}} {\C14;{\H2x;Brown {\Q20;Fox} }}{\C5;{\T2;Jumped }}Over the {\H75;Lazy} Dogs Back 1234567890}


  • This type of text modifications, whislt giving great effect, can slow down the process of entering textural highlights.
  • There is now obvious way to see what text has had format codes add without editing the text.
  • Editing text format will be limited to one block of text at a time.
  • Any preset used within the MTEXT will override any standard settings such as font, size, pen etc.
  • Currently there are no format codes for Bold or Italic. If you want a whole block of MTEXT to have Bold or Italic format, right click the font in the Text Set dialogue and select the require format.text

Adding Formats Using the Caddie Text Editor

By using the text editor in Caddie, text can have most of the basic formats added by simply selecting the text and clicking the required format (pen, bold, italic, size etc.).  See the help in Caddie "Enter text via Editor" for further information.


The properties of selected object can't be changed

A common question is why with objects selected can't  the properties be changed. There are a number of answer to this and it can depend on the type of object that is selected.

Here are a couple of examples.

If a block reference is selected, the objects being displayed are part of the block information and not the selected Block Reference. References have their own properties and it is these that you change with Object Properties.

There are some cases where changing the properties of the Block reference can change the way the contents are displayed. This will only happen if the block objects have there assignments set to one or more of: Pens 'By Block', Linestyles 'By Block' and Pen Thickness 'By Block'. In these cases the contents will be displayed with what ever the Block Refence current properties are.

If the objects being displayed are directly assigned, rather than 'By Block' the block  needs to be edited. Note however that all Block references displaying this Block will also be updated. If this is not desirable then either copy and edit the block or if you don't require a block, 'Explode' the reference and then change the properties.


Another reason the selected objects can not be edited is they may be on a locked layer. Go the 'CADDIE | SCOPE | LAYER SET' and check the layer has the 'E' in 'VSE' available. If not select the layer and choose the 'E' flag at the bottom of the dialogue. As a note more that one layer can be changed at a time. Use the standard Windows 'Control' or 'Shift' selection method.

Caddie 9 - Why can't I type the distance in directly when doing parallel commands on Windows Vista & Windows 7


Caddie 9



Caddie 9 was developed to run on operating systems available in 2002 like Windows NT, 2000 and XP 32-bit environments.

If you want to run the old Caddie 9 software on newer operating systems like Windows Vista or Windows 7 (32-bit) you might have to use the system differently.

For instance, if you select the Lines > Parallel button, you cannot start typing the distance in the dialogue as you would have on Windows XP.

The only way around this, without having to use your mouse, is to press the TAB key on your keyboard.  This will highlight the current distance(like in XP), and then you can type in your desired distance.  This is the only shortcut and this step will have to be repeated every time you use such a command.

Why doesn't Option End unselect everything in Caddie 16?

In earlier versions of Caddie Option End on the context sensitive menu could be used to unselect objects.


The selection is vastly more flexible in Caddie 16, with the ability to select by polygon, rectangle, crossing, outside polygon, outside rectangle, etc etc.


Some of these functions require an Option End (similar to mark), therefore Option End cannot unselect objects in Caddie 16.


The context sensitive menu now has an abort option (which has the same functionality as the escape key on the keyboard). Use this function to terminate commands rather than Option End.

© 2024 Caddie Limited. All Rights Reserved.
